Position of the Moon by Spreadsheet
for a day

download

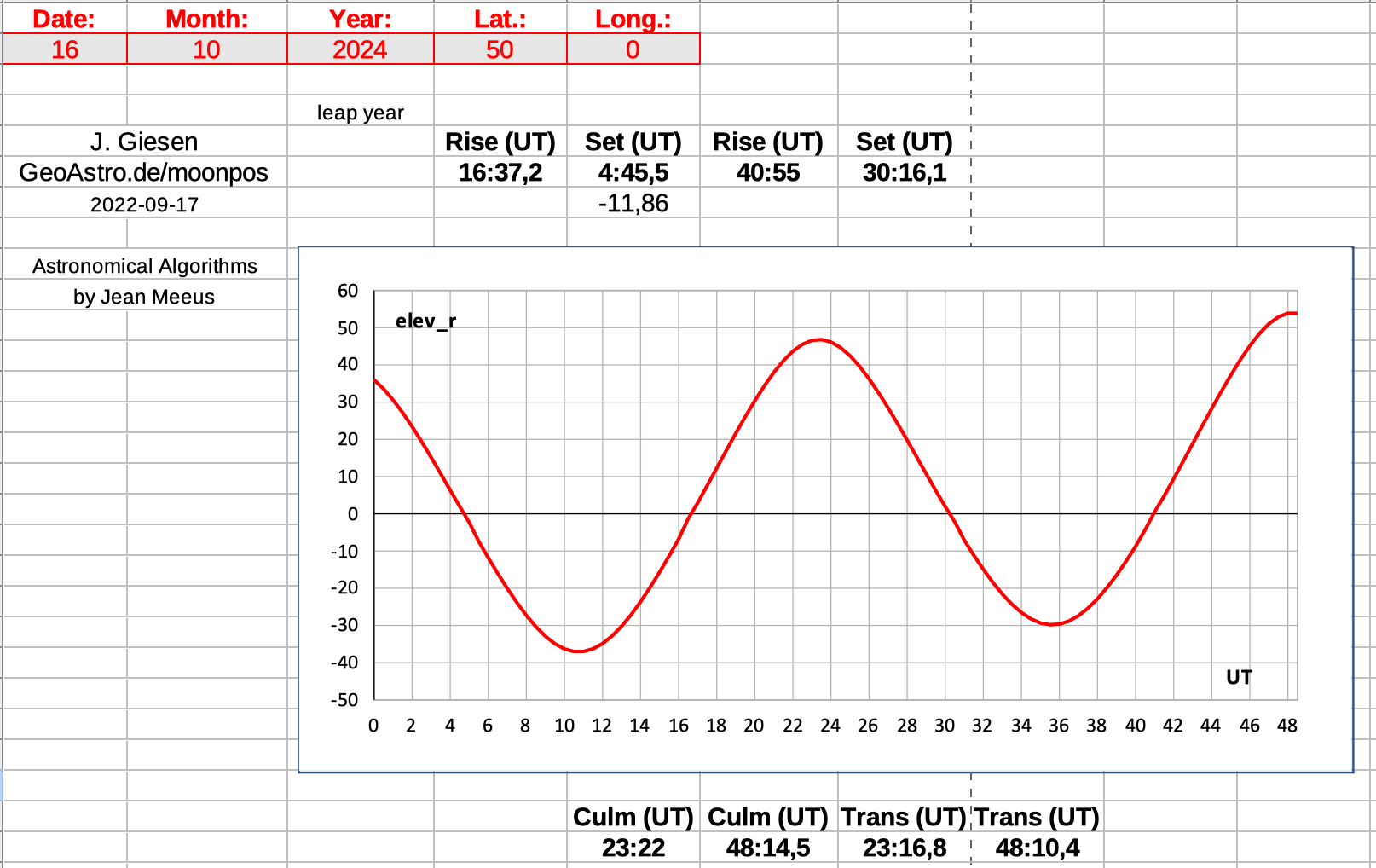

Select the table 'input': moon day

Input (red frames):

1) Date, Month, Year

2) geogr. latitude und longitude (eastern longitude positive)

Don't modify any other cell.

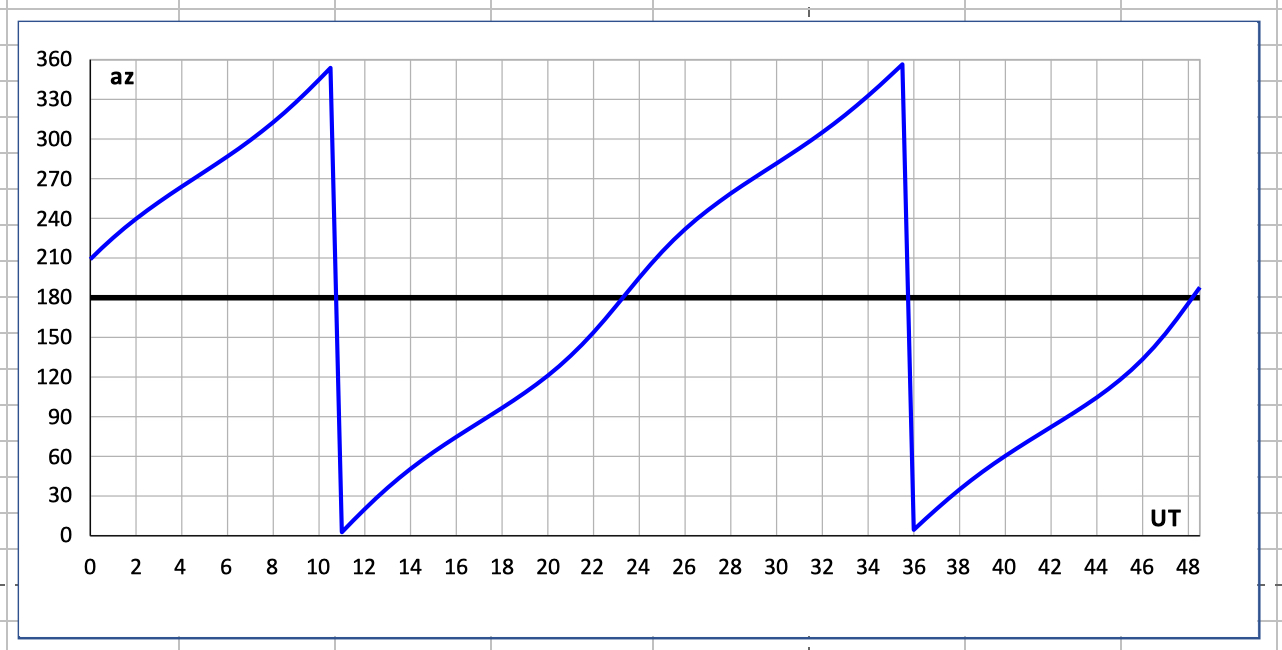

input spread sheet

moon position
The table 'calc' performs the calculations, using a lot of auxiliary variables. Don't edit any cell!

Select 'elev az illum' to see data and diagrams of elevation, azimut and illumination.
Select 'distance' for data of the geocentric distance.

Culmination and Transit

The culmination of a celestial body means that the body is at its greatest altitude, whereas the transit is the passage of its center through the meridian.

Only the fixed stars culminate really in the meridian. The Sun, Moon, and the planets culminate out of the meridian.
At mid-latitudes (50°) the difference may be up to 18 seconds for the Sun, and more than 6 minutes for the Moon.

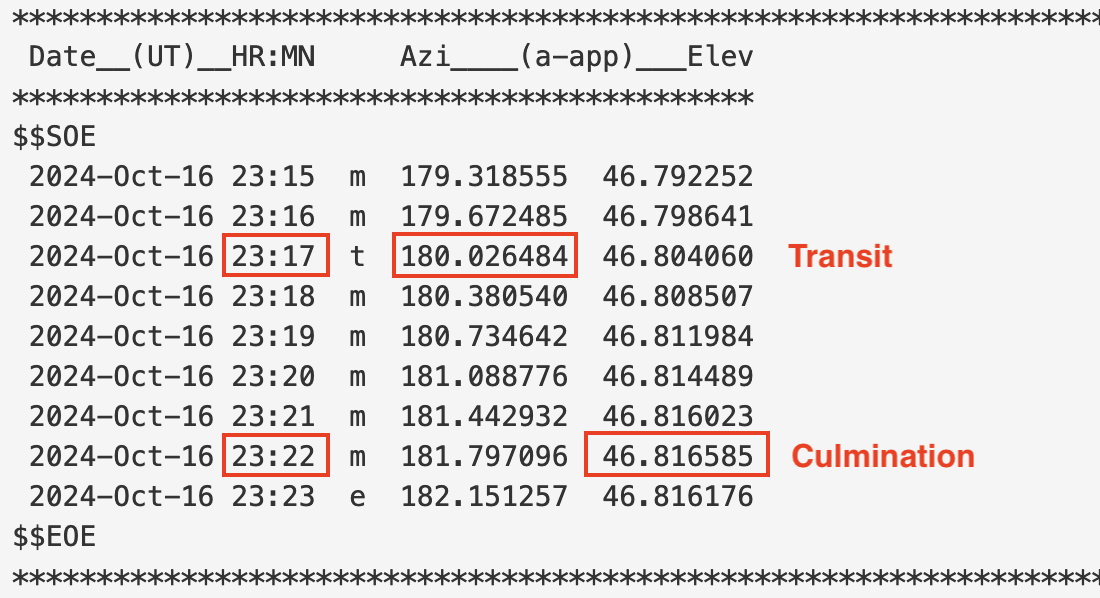

The Moon, 50°N, 0°E



JPL Horizons System


Transit before culmination: ∆T ≈ 5 min, az ≈ 1,77°, ∆elev ≈ 0.013°

My spradsheet is computing transit by linear interpolation, culmination by parabolic interpolation.


*****

Solar Eclipse of 2022, Oct. 25

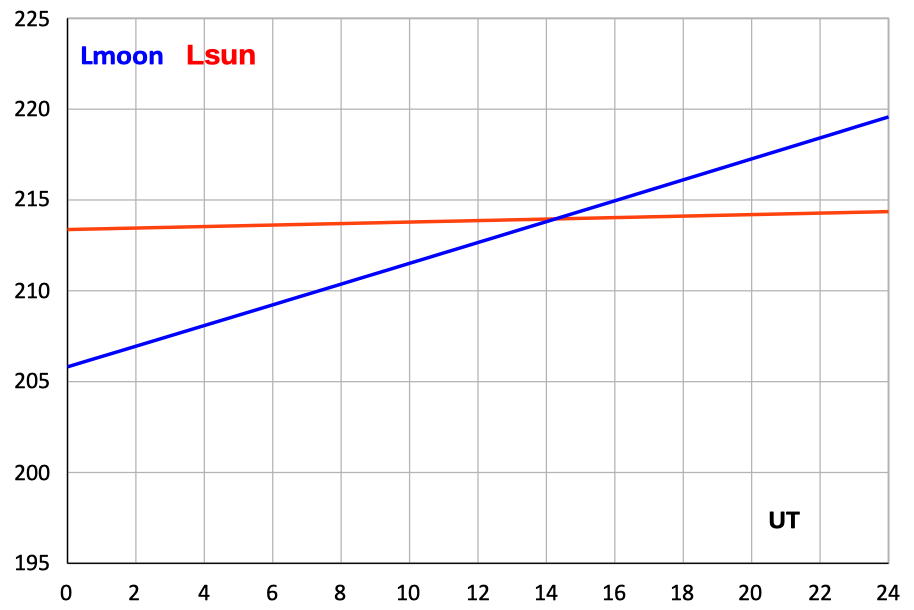

On Oct. 25 at 14 UT equal longitudes:
solar
                    elcipse 2022

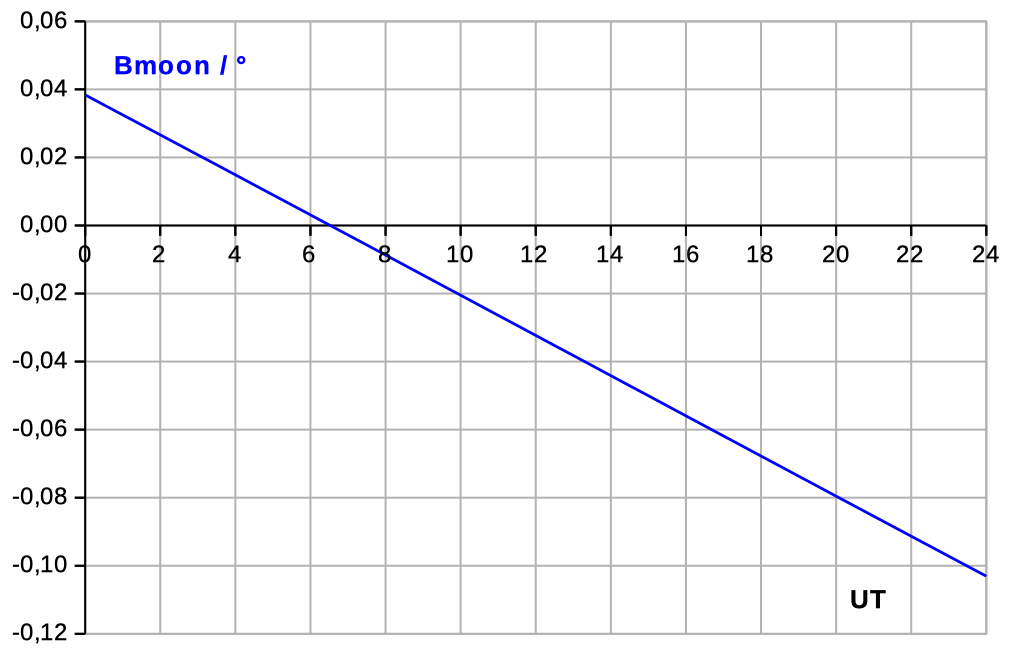

On Oct. 26 at 6:30 UT the Moon passes the descending node:

eclipse 2022
                    Oct 26solar


delay

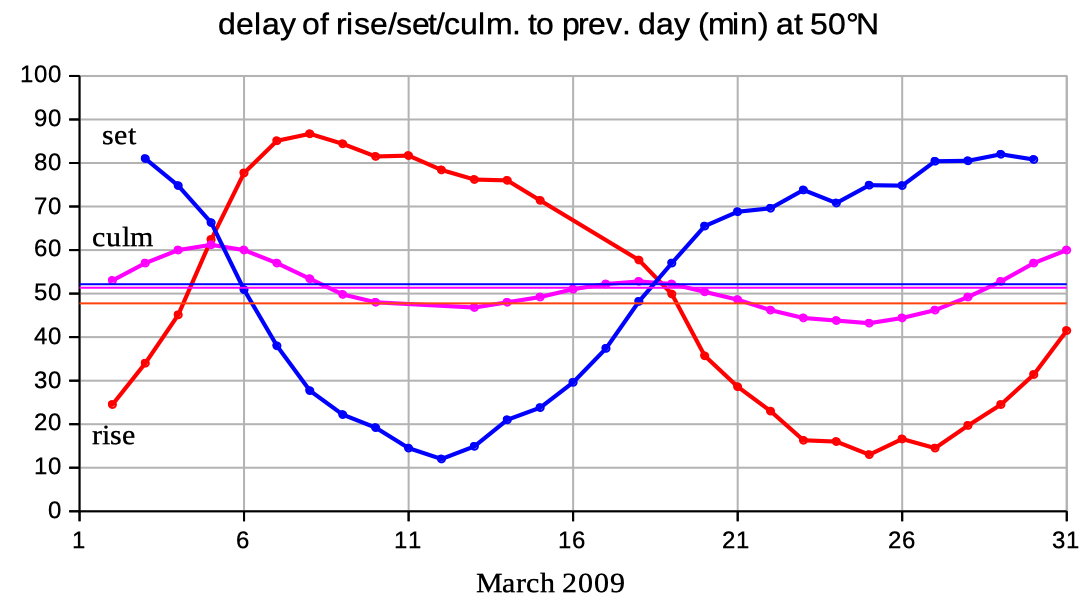

Rise of the Moon occurs 13 to 87 minutes later than on previous day, and set 12 to 82 minutes later.

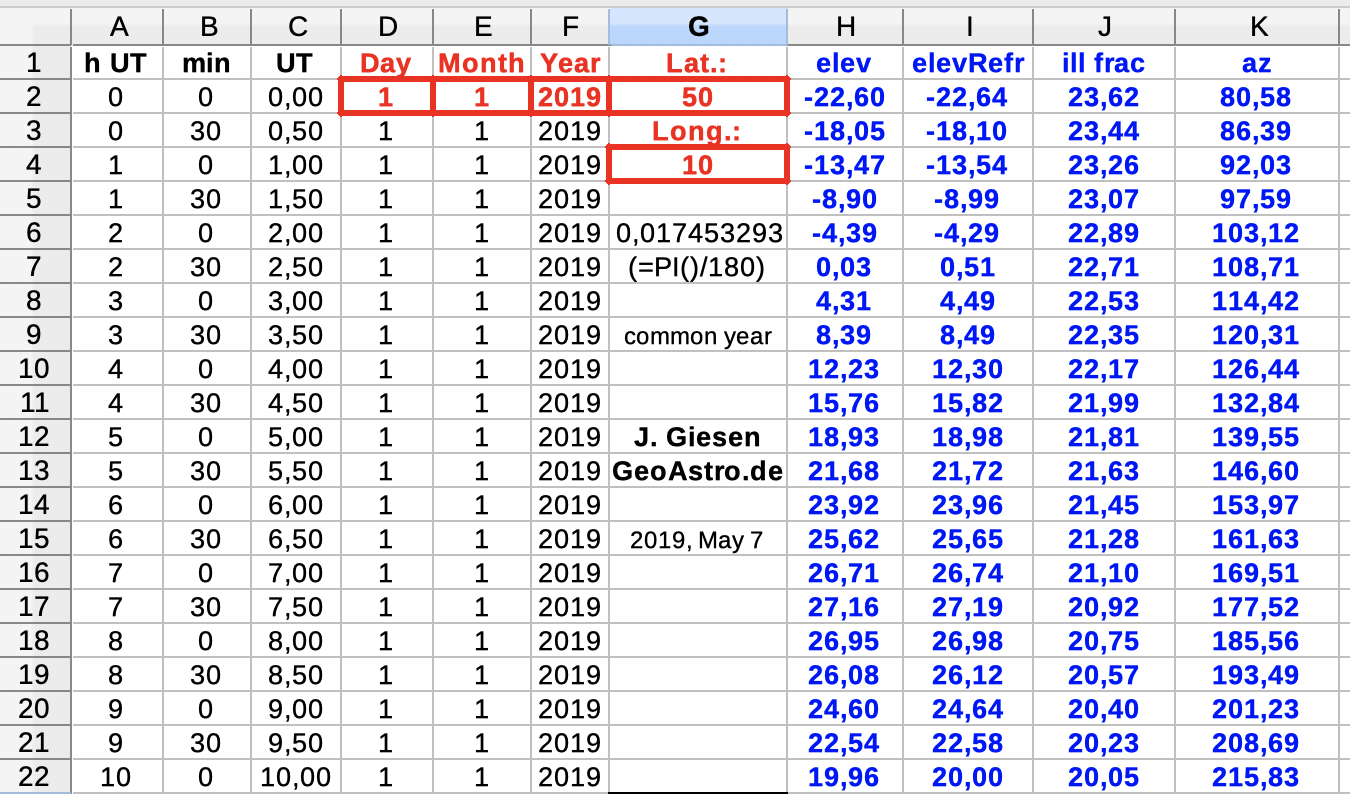

Example: 2019, Jan 1 at 50°N, 10°E:

spreadsheet
        moon position download


moon elevation altitude
        spreadsheet download

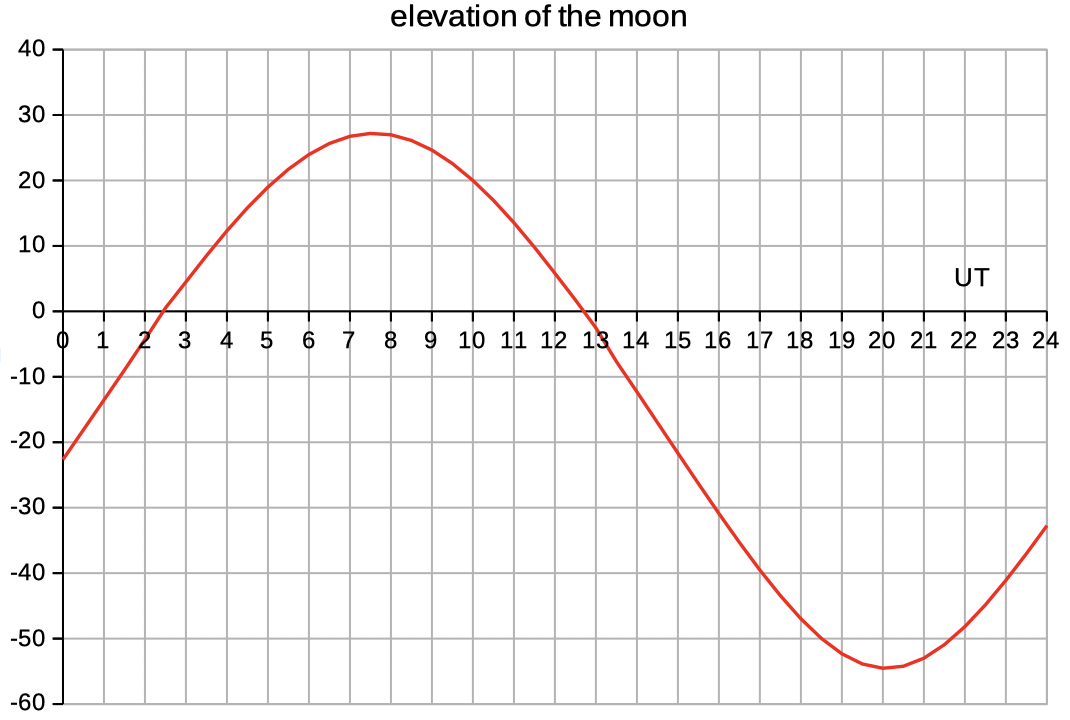

The value "elev1" is not taking into account the atmospheric refracion.

Comparing the results "elev1" (airless) of my spreadsheet with the 4 decimal values of MICA
the mean absolute error is only (0,007 ± 0,005)°.

The refraction is calculated ("elev refr.") by
1.02/(60*tan(K*(elev+10.3/(elev+5.11))))

***
Rise and set (UT) of the Moon are computed by interpolation:

moon rise         moon set

The mean error is (0.65±0.55) minutes (MICA)

In 2022 (1st of month): (0.72 ± 0.63) minutes (MICA)

In 2023 (1st of month): (0.58 ± 0.58) minutes (USNO)

***

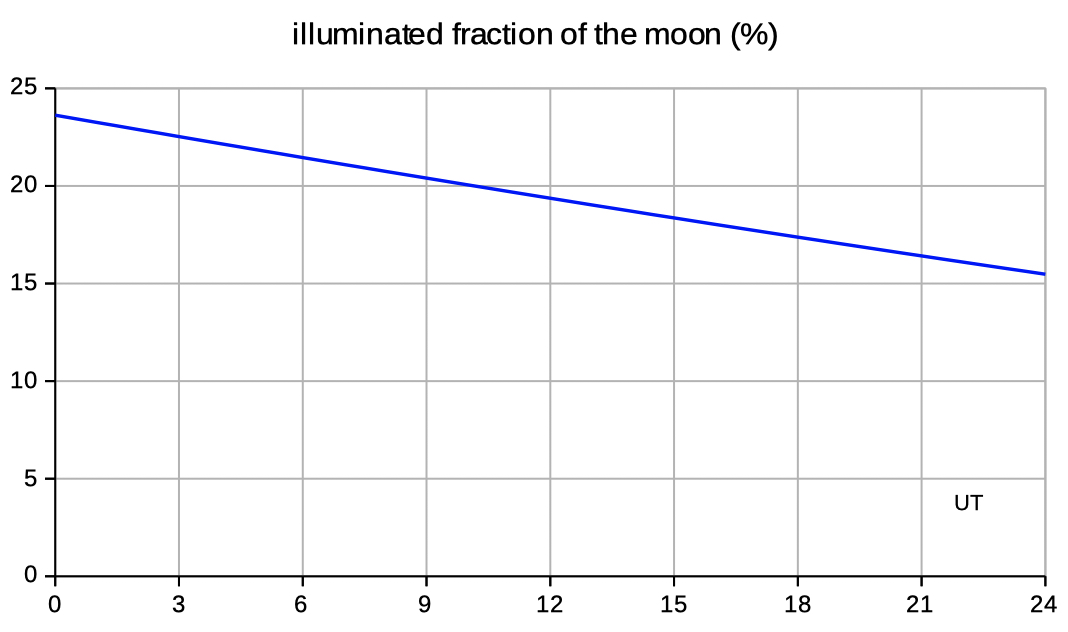

The illuminated fraction k of the moon is geocentric, computed (Meeus, Astronomical Algorithms, Ch. 46)

k = [1+cos(i)]/2

cos(i)= cos(Bmoon) cos(Lmoon-Lsun)


moon spreadsheet excel download
        altitude illumination


moon position azimuth
        elevation illuminated fraction excel download

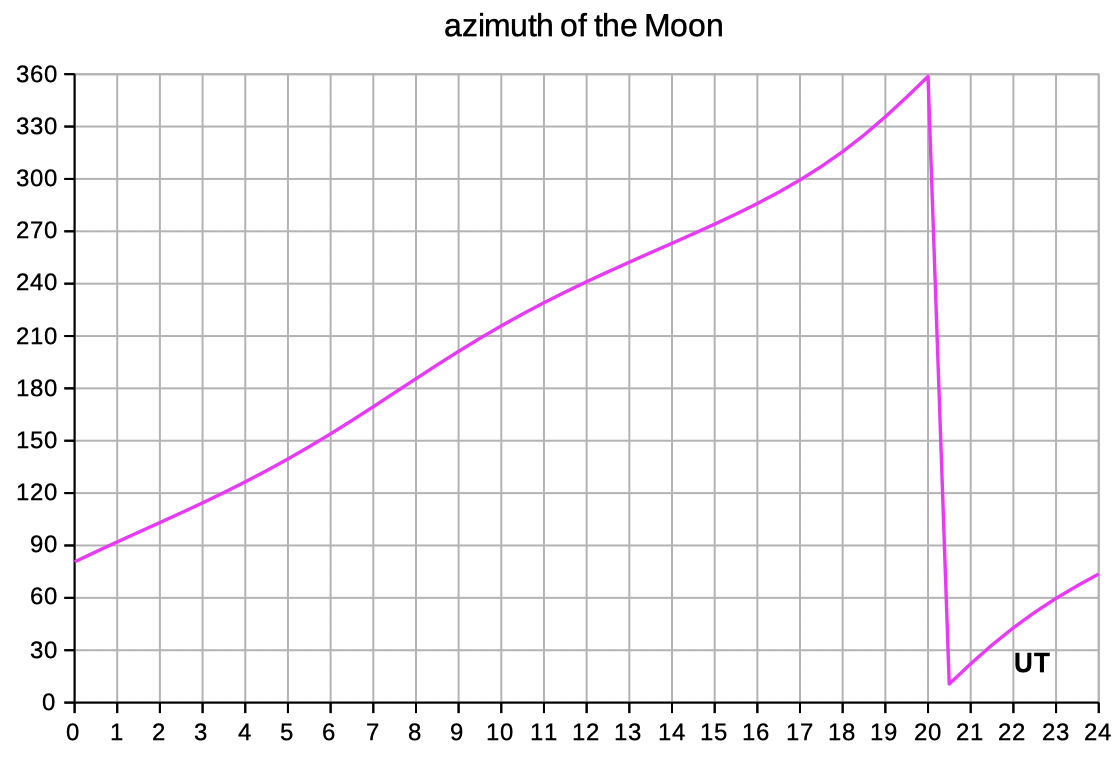

Azimuth is measured North(0°) -> East(90°) -> South(180°) -> West(270°) -> North (360°).

Comparing the azimuth results "az" of my spreadsheet with the 4 decimal values of HORIZONS Web-Interface
(NASA JPL) the mean absolute error is (0,009 ± 0,005)°.

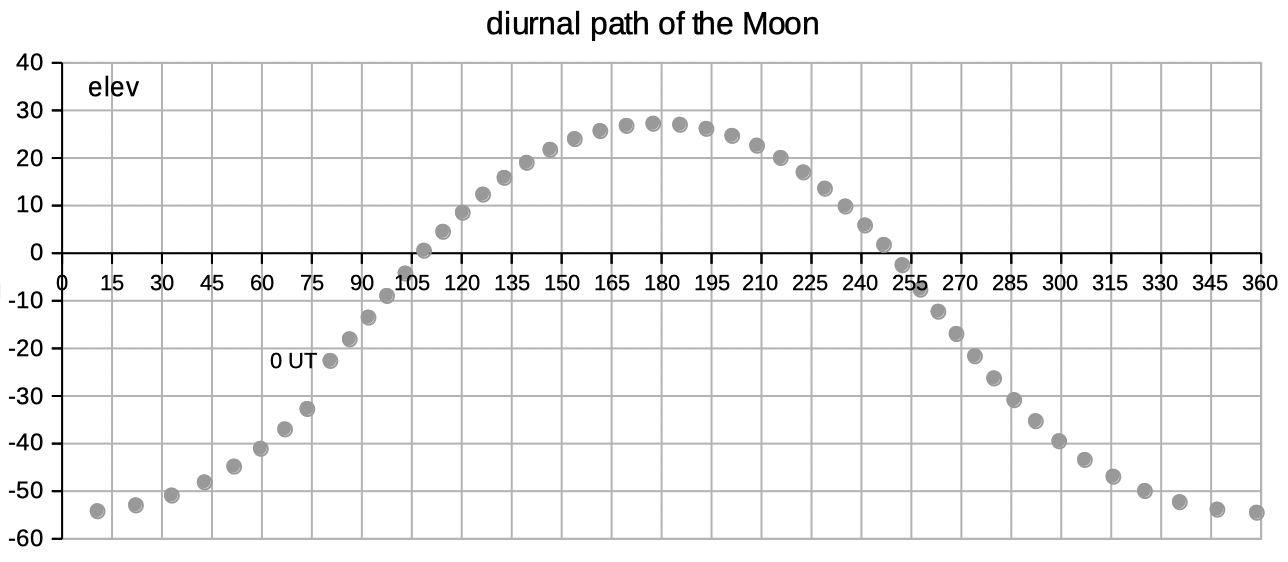

The Moon on Jan 01:

moon path diurnal motion sky
          horizon

***

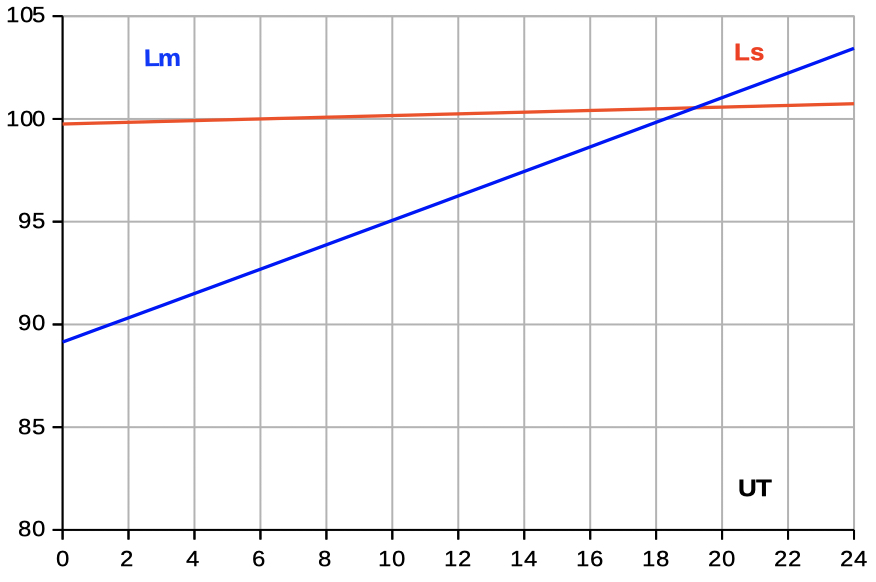

The Total Solar Eclipse of 2019 Jul 02 (NASA):
Greatest Eclipse: 19:22:58.5 UT
Lat = 17°23.3'S, Long = 109°00.0'W
Sun Altitude =  49.6°
Sun Azimuth = 359.0°

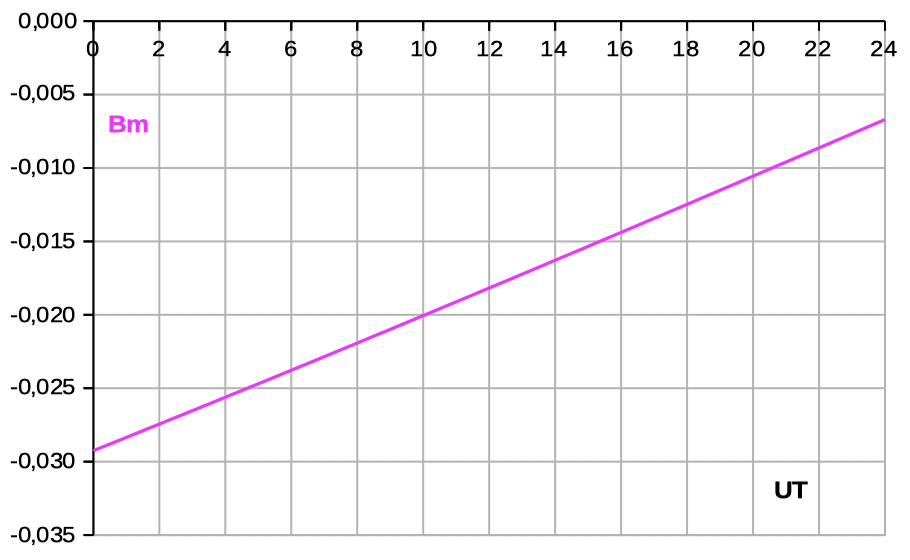

conditions:
|Lsun-Lmoon|='small'  and |Bmoon|='small'

solar eclipse 2019

solar eclipse 2019

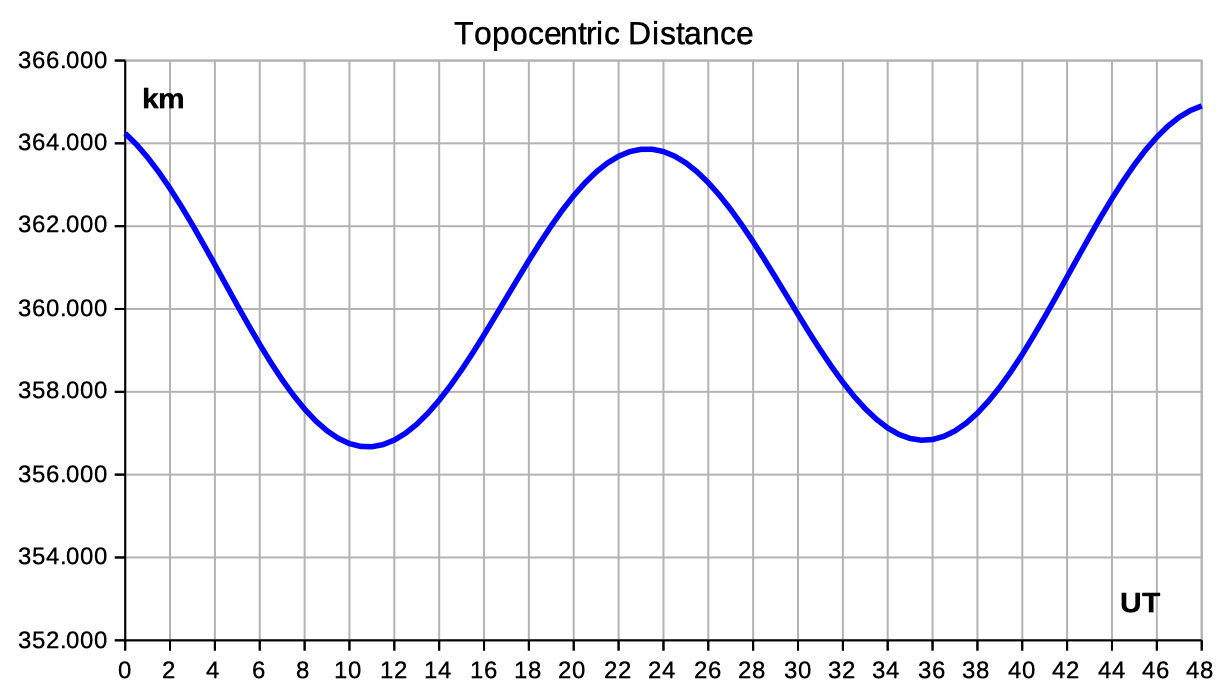

topocentric distance

At 50°N 15°E the mean abs. error for 1st of month in 2022 and 2023 (reference MICA) is
(3.4 ± 2.6) km


Download speadsheet :

moon_day.xlsx   (Excel, Windows and Mac)

moon_day.ods   (LibreOffice, Windows and Mac)

Updated!
